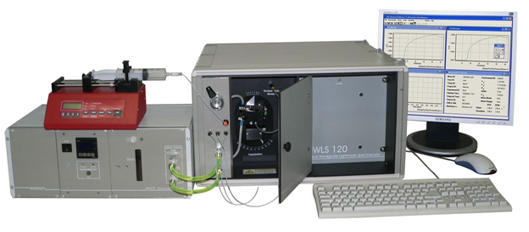

OWLS 120 Standard System

The OWLS 120 is a state-of-the-art device for the in situ study of the kinetics and equilibrium constants of surface processes. As a label-free biosensor,
it is a very high sensitivity, real-time technology for investigating adsorption and binding processes.

The OWLS 120 Standard System includes: main measuring unit with optomechanical system, built-in PC, integrated sensor holder and SIS-06 sample injection subunit, TC-40 temperature control subunit, and computer peripherials including 17" LCD Monitor, keyboard, mouse and USB flash drive.

Product description

Optomechanical system
Electronic signal processing and controlling unit
Built in PC with hard disk, CD reader/writer, USB ports
Power supplies
Integrated sensor holder
SIS-06 sample injection subunit, see separate datasheet
Optional configuration with SIS-03 sample injection subunit - see separate datasheet
TC-40 temperature control subunit, see separate datasheet

Optional units

Electro-Chemical OWLS System
OWLS measurements with ITO coated OW 2400 sensor & EC cuvette. Transparent electrically conductive layer on the sensor surface allows investigation of surface adsorption processes under electric field.
Fluoro-OWLS measuring System
OWLS measurements with special fluoro-cuvette allows combined fluorescent labeled & OWLS measurements. Optional Fluoro–BioSense software module is offered for data evaluation & interpretation.
