OWLS Sensors - Label free biosensors

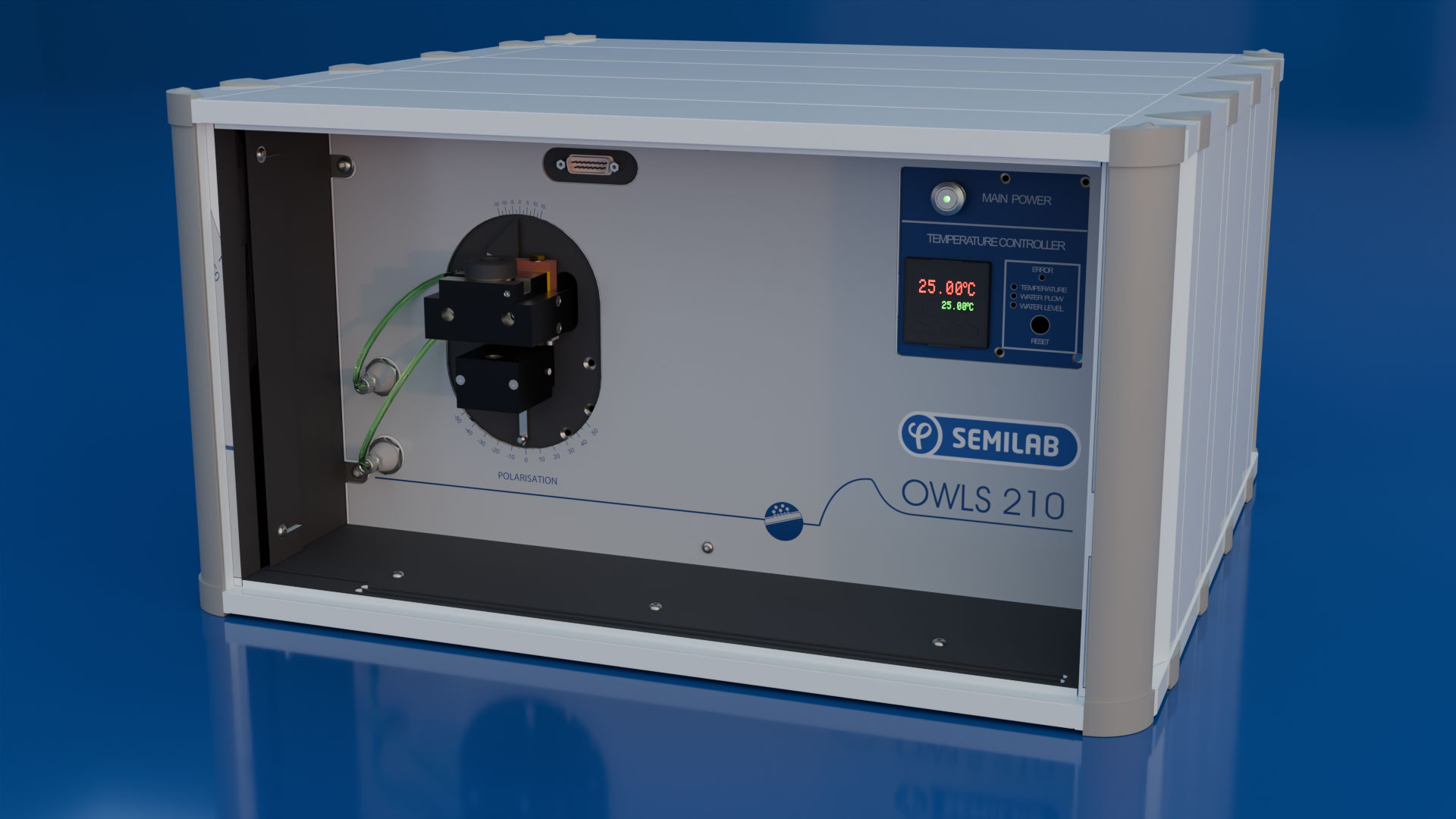

OWLS 210 Label-free, Real-time Biosensor System

OWLS 210 real-time, label-free biosensor systemThe OWLS 210 is a state-of-the-art device for the in situ study of the kinetics and equilibrium constants of surface processes. As a label-free biosensor, it is a very high sensitivity, real-time technology for investigating adsorption and binding processes.

The OWLS 210 Standard System includes the main measuring unit with optomechanical system, with electronic control, data acquisition, temperature control and integrated sensor holder. The SIS-06 sample injection subunit is also part of the standard configuration.
Request More Information

Product description

  • Optomechanical system
  • Electronic signal processing and controlling unit
  • Integrated sensor holder
  • Temperature control of the sensor holder
  • SIS-06 sample injection subunit, see separate datasheet
    Optional configuration with SIS-03 sample injection subunit – see separate datasheet
  • Microsoft Windows® with the latest BioSense software
  • Power supplies

Optional units

  • Electro-Chemical OWLS System
    OWLS measurements with ITO coated OW 2400 sensor & EC cuvette. Transparent electrically conductive layer on the sensor surface allows investigation of surface adsorption processes under electric field.
  • Fluoro-OWLS measuring System
    OWLS measurements with special fluoro-cuvette allows combined fluorescent labeled & OWLS measurements. Optional Fluoro–BioSense software module is offered for data evaluation & interpretation.

Datasheets

PDF iconOWLS 210 datasheet (PDF)

PDF iconBioSense datasheet (PDF)

PDF iconSIS-06 Datasheet (PDF)

PDF iconSIS-03 datasheet (PDF)

PDF iconSH-0812 Sensor Holder datasheet (PDF)

PDF iconOW 2400 sensor chip datasheet (PDF)

PDF iconEC-OWLS datasheet (PDF)
